Timing gear cover & rear end plate for GS300 / 430 UZS161R

Click on the part subgroup below to get genuine part numbers.

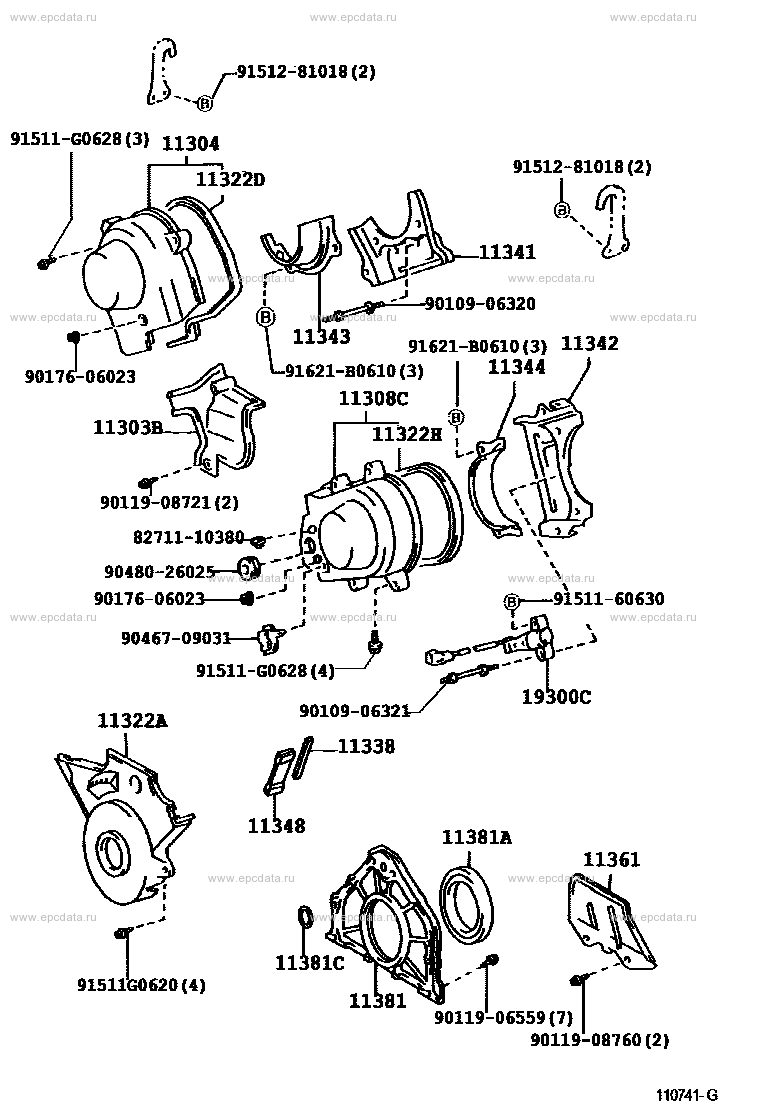

Open full size scheme

Click part number in the scheme or in the list: 9151281018 ** Std Part 91511G0628 ** Std Part 11381A SEAL, ENGINE REAR OIL 91621B0610 ** Std Part 9017606023 ** Std Part 9010906320 ** Std Part 9010906321 ** Std Part 9048026025 ** Std Part 9046709031 ** Std Part 9011908760 ** Std Part 9011906559 ** Std Part 9011908721 ** Std Part 9151160630 ** Std Part 11338 GASKET, TIMING CHAIN COVER, NO.2 8271110380 ** Std Part 11381 RETAINER, ENGINE REAR OIL SEAL 11303B COVER SUB-ASSY, TIMING BELT, NO.2 11304 COVER, TIMING CHAIN OR BELT, NO.2 19300C SENSOR ASSY, CAM POSITION 11341 PLATE, TIMING BELT, RR RH 11344 PLATE, TIMING BELT, RR LH NO.2 11342 PLATE, TIMING BELT, RR LH 11361 COVER, FLYWHEEL HOUSING UNDER 11381C RING, O (FOR OIL SEAL RETAINER) 11343 PLATE, TIMING BELT, RR RH NO.2 11308C COVER SUB-ASSY, TIMING BELT, NO.3 LH 11322H GASKET, TIMING BELT COVER NO.3 11322D GASKET, TIMING BELT COVER NO.1 11322A COVER, TIMING BELT NO.1 11348 SPACER, TIMING GEAR COVER

GS300 / 430 UZS161R
