LexusGS300 / 430 / 460UZS190LUZS190L-BETQKWTransmission and chassisRear disc brake caliper & dust cover

Rear disc brake caliper & dust cover for GS300 / 430 / 460 UZS190L




Here are parts you've selected:

No PNC#
(SUB)		 OEM part number Required
per car		 Production period Name Applicability Please order in advance In stock
01 04946 04946-22090 01 01.2005 - 09.2006 SHIM KIT, ANTI SQUEAL (FOR REAR DISC BRAKE) UZS190..EUR
  17.07
to 37.30 USD
02 04946 04946-22090 01 09.2006 - 09.2007 SHIM KIT, ANTI SQUEAL (FOR REAR DISC BRAKE) UZS190..LHD..EUR
CHINA SPEC,ISRAEL SPEC		  17.07
to 37.30 USD
03 04946 04946-30200 01 09.2006 - 09.2007 SHIM KIT, ANTI SQUEAL (FOR REAR DISC BRAKE) UZS190..LHD..EUR
 0.00 USD
04 04946 04946-22090 01 09.2007 SHIM KIT, ANTI SQUEAL (FOR REAR DISC BRAKE) UZS190..EUR
  17.07
to 37.30 USD

More than 1 spare part found. Please define it more accurately before ordering.

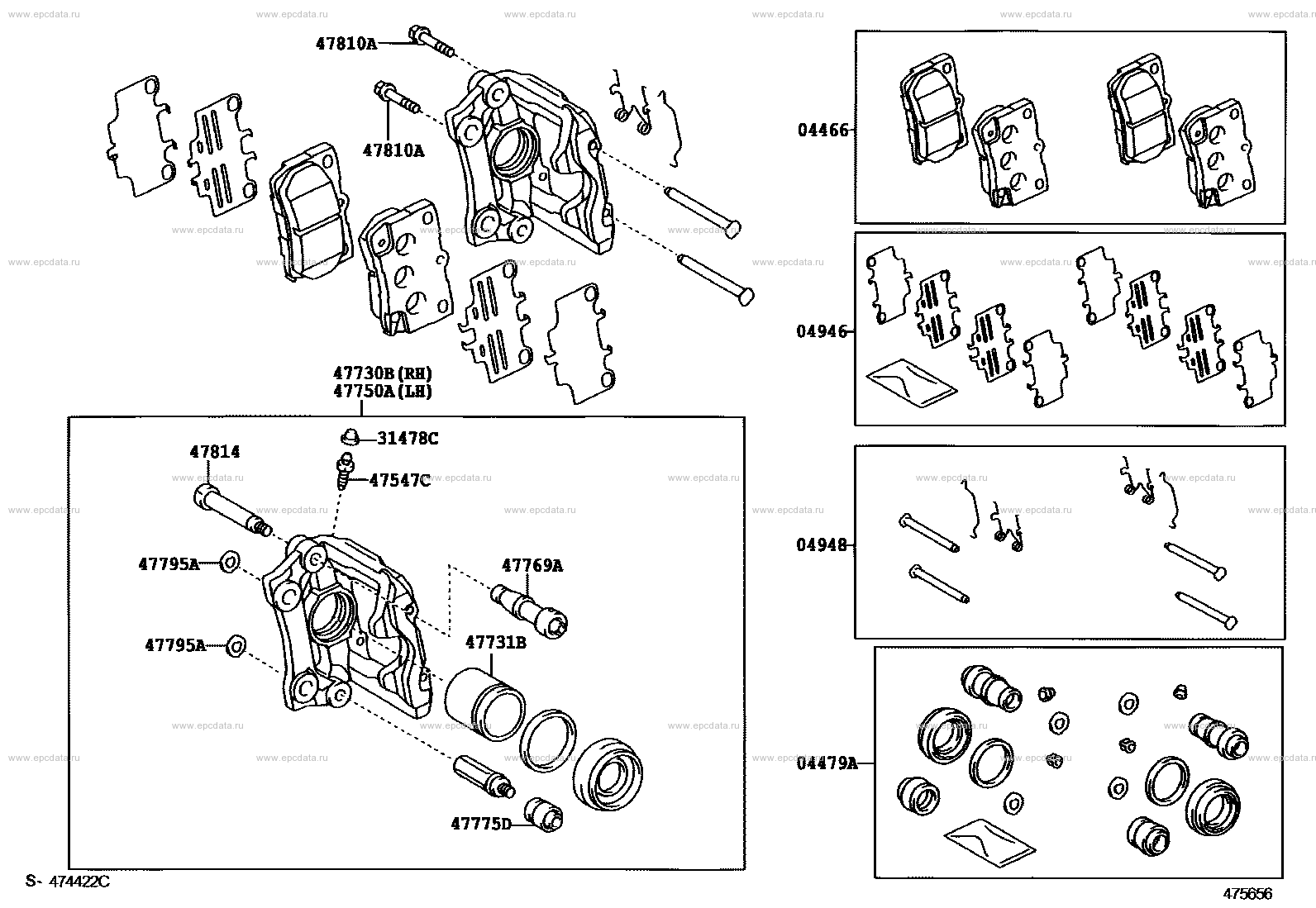

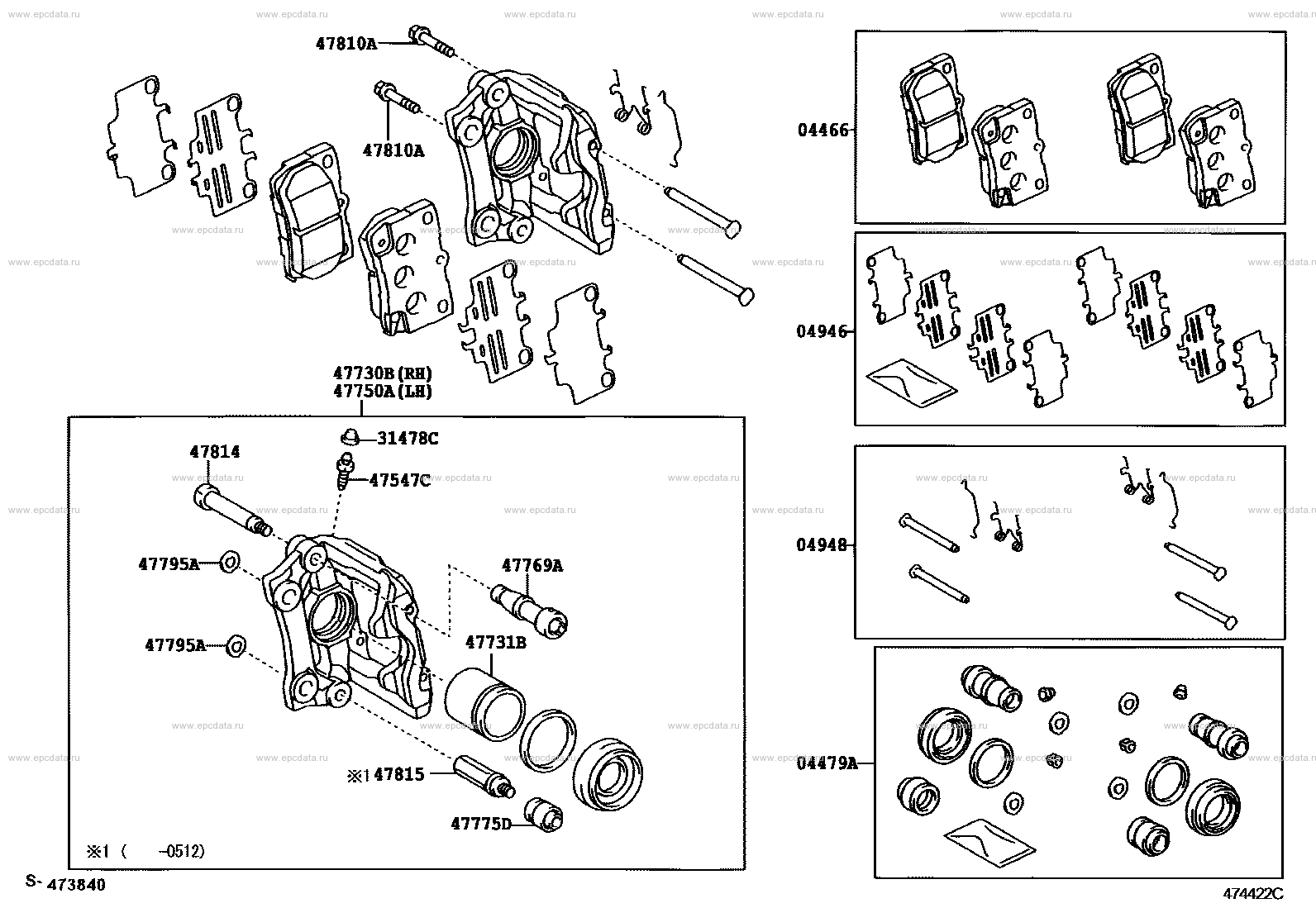

Scheme 1 Scheme 2 Scheme 3 Scheme 4

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Click part number in the scheme or in the list:

47810A BOLT, HEXAGON (FOR REAR CALIPER)
04466 PAD KIT, DISC BRAKE, REAR (PAD ONLY)
47814 PIN, CYLINDER SLIDE, NO.1 (FOR REAR DISK BRAKE)
47815 PIN, REAR CYLINDER SLIDE, NO.2 (FOR REAR DISK BRAKE)
47731B PISTON, REAR DISC BRAKE
47547C PLUG, BLEEDER (FOR REAR DISC BRAKE)
31478C CAP, BLEEDER PLUG (FOR REAR DISC BRAKE)
47769A BUSH, CYLINDER SLIDE, NO.1 (FOR REAR DISC BRAKE)
47730B CYLINDER ASSY, REAR DISC BRAKE, RH
47750A CYLINDER ASSY, DISC BRAKE, REAR LH
47775D BOOT, BUSH DUST (FOR REAR DISC BRAKE)
47795A PLATE, REAR DISC BRAKE CALIPER, NO.1
04946 SHIM KIT, ANTI SQUEAL (FOR REAR DISC BRAKE)
04948 FITTING KIT, DISC BRAKE, REAR
04479A CYLINDER KIT, DISC BRAKE, REAR

Scheme 2

Click part number in the scheme or in the list:

47810A BOLT, HEXAGON (FOR REAR CALIPER)
04466 PAD KIT, DISC BRAKE, REAR (PAD ONLY)
47814 PIN, CYLINDER SLIDE, NO.1 (FOR REAR DISK BRAKE)
47731B PISTON, REAR DISC BRAKE
47547C PLUG, BLEEDER (FOR REAR DISC BRAKE)
31478C CAP, BLEEDER PLUG (FOR REAR DISC BRAKE)
47769A BUSH, CYLINDER SLIDE, NO.1 (FOR REAR DISC BRAKE)
47730B CYLINDER ASSY, REAR DISC BRAKE, RH
47750A CYLINDER ASSY, DISC BRAKE, REAR LH
47775D BOOT, BUSH DUST (FOR REAR DISC BRAKE)
47795A PLATE, REAR DISC BRAKE CALIPER, NO.1
04946 SHIM KIT, ANTI SQUEAL (FOR REAR DISC BRAKE)
04948 FITTING KIT, DISC BRAKE, REAR
04479A CYLINDER KIT, DISC BRAKE, REAR

Scheme 3

Click part number in the scheme or in the list:

47810A BOLT, HEXAGON (FOR REAR CALIPER)
47814 PIN, CYLINDER SLIDE, NO.1 (FOR REAR DISK BRAKE)
31478C CAP, BLEEDER PLUG (FOR REAR DISC BRAKE)
47547C PLUG, BLEEDER (FOR REAR DISC BRAKE)
47769A BUSH, CYLINDER SLIDE, NO.1 (FOR REAR DISC BRAKE)
47731B PISTON, REAR DISC BRAKE
47730B CYLINDER ASSY, REAR DISC BRAKE, RH
47750A CYLINDER ASSY, DISC BRAKE, REAR LH
47795A PLATE, REAR DISC BRAKE CALIPER, NO.1
47775D BOOT, BUSH DUST (FOR REAR DISC BRAKE)
04466 PAD KIT, DISC BRAKE, REAR (PAD ONLY)
04946 SHIM KIT, ANTI SQUEAL (FOR REAR DISC BRAKE)
04948 FITTING KIT, DISC BRAKE, REAR
04479A CYLINDER KIT, DISC BRAKE, REAR

Scheme 4

Click part number in the scheme or in the list:

47810A BOLT, HEXAGON (FOR REAR CALIPER)
04466 PAD KIT, DISC BRAKE, REAR (PAD ONLY)
47814 PIN, CYLINDER SLIDE, NO.1 (FOR REAR DISK BRAKE)
47731B PISTON, REAR DISC BRAKE
47547C PLUG, BLEEDER (FOR REAR DISC BRAKE)
31478C CAP, BLEEDER PLUG (FOR REAR DISC BRAKE)
47769A BUSH, CYLINDER SLIDE, NO.1 (FOR REAR DISC BRAKE)
47730B CYLINDER ASSY, REAR DISC BRAKE, RH
47750A CYLINDER ASSY, DISC BRAKE, REAR LH
47775D BOOT, BUSH DUST (FOR REAR DISC BRAKE)
47795A PLATE, REAR DISC BRAKE CALIPER, NO.1
04946 SHIM KIT, ANTI SQUEAL (FOR REAR DISC BRAKE)
04948 FITTING KIT, DISC BRAKE, REAR
04479A CYLINDER KIT, DISC BRAKE, REAR

Lexus GS300 / 430 / 460 genuine parts
