Oil pump for LS400 UCF10R
Click on the part subgroup below to get genuine part numbers.
|

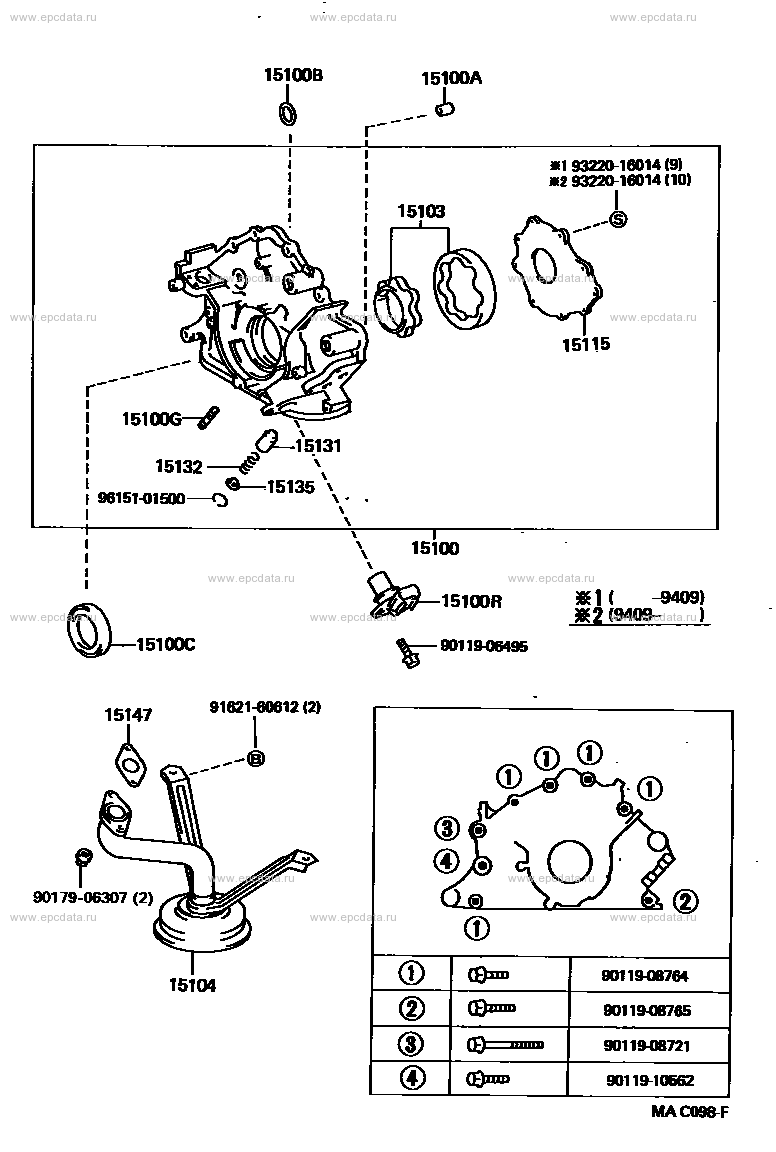

Click part number in the scheme or in the list: 15100B RING, O (FOR OIL PUMP)15100A PIN, RING (FOR OIL PUMP SET) 9322016014 ** Std Part 15103 GEAR SET, OIL PUMP 15115 COVER, OIL PUMP 15100G BOLT,STUD (FOR OIL PUMP) 15131 VALVE, OIL PUMP RELIEF 15132 SPRING, OIL PUMP RELIEF VALVE 15135 RETAINER, OIL PUMP RELIEF VALVE 9615101500 ** Std Part 15100 PUMP ASSY, OIL 15100R SENSOR, CRANK POSITION 15100C SEAL (FOR OIL PUMP) 9011906495 ** Std Part 9162160612 ** Std Part 15147 GASKET, OIL STRAINER 9017906307 ** Std Part 9011908764 ** Std Part 15104 STRAINER SUB-ASSY, OIL 9011908765 ** Std Part 9011908721 ** Std Part 9011910562 ** Std Part |
