Starter for LS400 UCF10R

Click on the part subgroup below to get genuine part numbers.

Scheme 1

Open full size scheme Go to top

Click part number in the scheme or in the list: 28100 STARTER ASSY 9009905129 ** Std Part 9009914064 ** Std Part 28120 YOKE ASSY, STARTER 28251 PINION, STARTER DRIVE 28140 HOLDER ASSY, STARTER BRUSH 28143 SPRING, STARTER BRUSH 28160A BEARING, STARTER ARMATURE 28130 FRAME ASSY, STARTER COMMUTATOR END 9451100600 ** Std Part 28160 ARMATURE ASSY, STARTER 9009904974 ** Std Part 28199 COVER, STARTER 9009126040 ** Std Part 28182 STAY, STARTER COMMUTATOR END FRAME 2817615090 ** Std Part 28150 SWITCH ASSY, MAGNET STARTER 28228 ROLLER, STARTER IDLE GEAR CLUTCH 28229 RETAINER, STARTER IDLE GEAR 28252 GEAR, STARTER IDLE 9009900907 ** Std Part 9009904473 ** Std Part 28169 CLAMP, STARTER MOTOR LEAD WIRE 28175A GASKET, MAGNET SWITCH COVER 28165 SPRING, STARTER MAGNET SWITCH RETURN 28226A STARTER KIT, MOTOR TERMINAL 28110 HOUSING ASSY, STARTER DRIVE 9009912009 ** Std Part 28011 CLUTCH SUB-ASSY, STARTER 28226 STARTER KIT, BATTERY TERMINAL 28235 PLUNGER, MAGNET SWITCH 28159B COVER, MAGNET SWITCH 28119A COVER, STARTER END FRAME 9017908146 ** Std Part 9011910597 ** Std Part

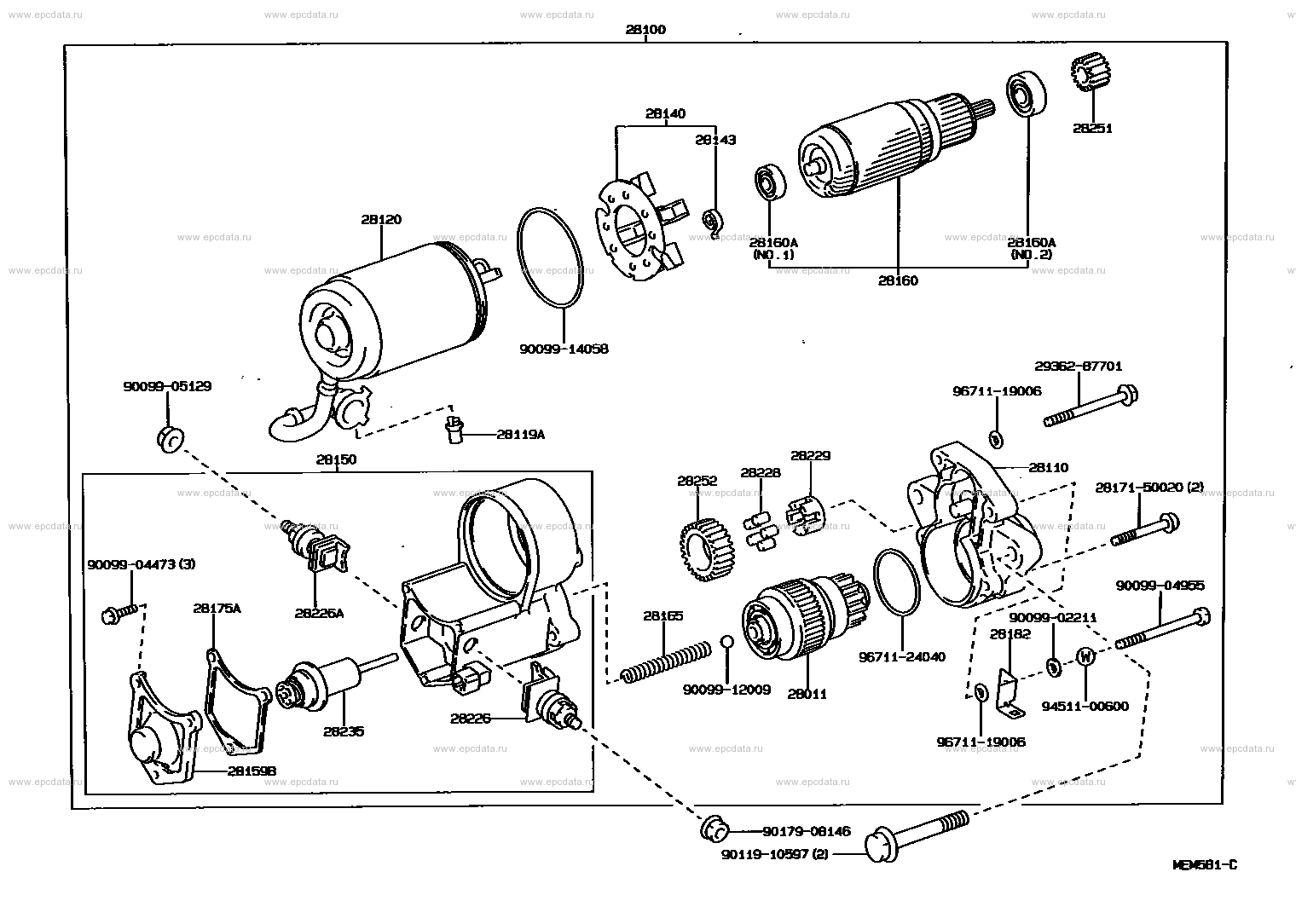

Scheme 2

Open full size scheme Go to top

Click part number in the scheme or in the list: 28100 STARTER ASSY 28140 HOLDER ASSY, STARTER BRUSH 28251 PINION, STARTER DRIVE 28143 SPRING, STARTER BRUSH 28120 YOKE ASSY, STARTER 28160A BEARING, STARTER ARMATURE 28160 ARMATURE ASSY, STARTER 9009914058 ** Std Part 2936287701 ** Std Part 9009905129 ** Std Part 9671119006 ** Std Part 28119A COVER, STARTER END FRAME 28229 RETAINER, STARTER IDLE GEAR 28150 SWITCH ASSY, MAGNET STARTER 28110 HOUSING ASSY, STARTER DRIVE 28228 ROLLER, STARTER IDLE GEAR CLUTCH 28252 GEAR, STARTER IDLE 2817150020 ** Std Part 9009904473 ** Std Part 9009904955 ** Std Part 28175A GASKET, MAGNET SWITCH COVER 28226A STARTER KIT, MOTOR TERMINAL 28165 SPRING, STARTER MAGNET SWITCH RETURN 9009902211 ** Std Part 28182 STAY, STARTER COMMUTATOR END FRAME 9671124040 ** Std Part 9009912009 ** Std Part 28011 CLUTCH SUB-ASSY, STARTER 9451100600 ** Std Part 28226 STARTER KIT, BATTERY TERMINAL 28235 PLUNGER, MAGNET SWITCH 28159B COVER, MAGNET SWITCH 9017908146 ** Std Part 9011910597 ** Std Part

LS400 UCF10R
