Brake booster & vacuum tube for RX300 / 330 / 350 MCU38L

Click on the part subgroup below to get genuine part numbers.

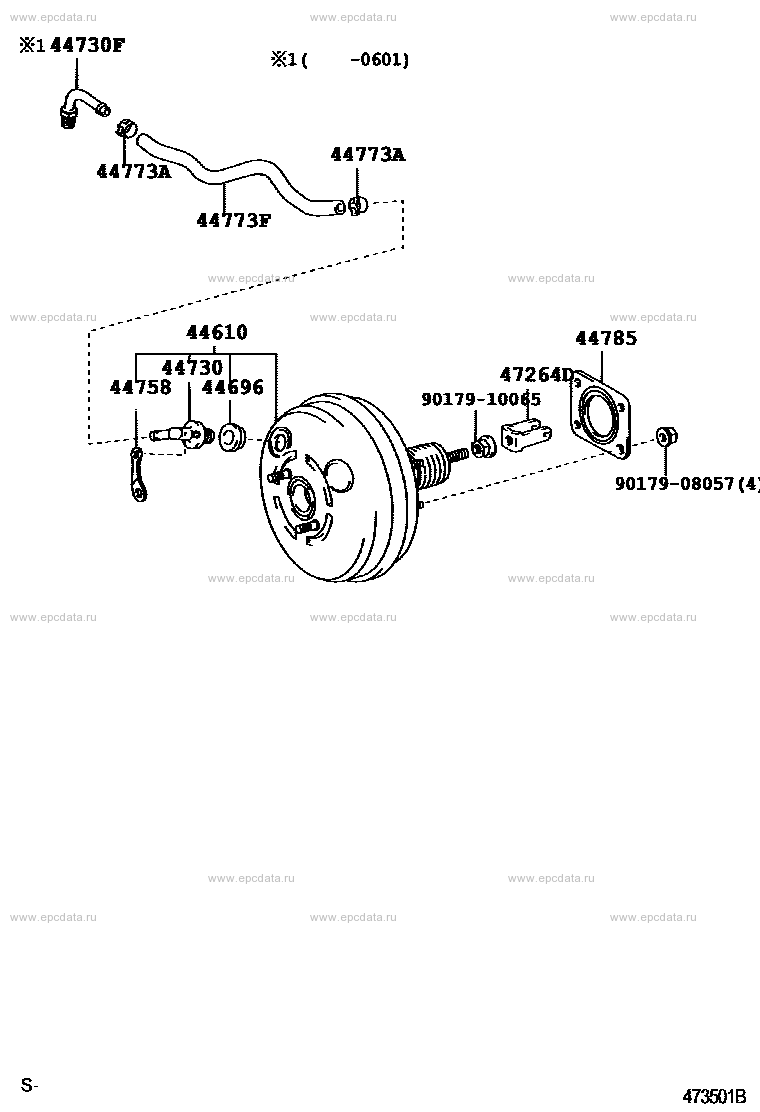

Open full size scheme

Click part number in the scheme or in the list: 9017908057 ** Std Part 44773A CLIP, NO.1 (FOR VACUUM HOSE, NO.2) 44773F HOSE, UNION TO CHECK VALVE 44785 GASKET, BRAKE BOOSTER 47264D CLEVIS, BRAKE MASTER CYLINDER PUSH ROD 9017910065 ** Std Part 44696 GROMMET, CHECK VALVE 44730 VALVE ASSY, VACUUM CHECK (FOR BRAKE) 44758 BRACKET, VACUUM CHECK VALVE 44610 BOOSTER ASSY, BRAKE 44730F UNION, VACUUM HOSE (FOR MANIFOLD SIDE)

RX300 / 330 / 350 MCU38L
