Wiring & clamp for RX400H MHU38R
Click on the part subgroup below to get genuine part numbers.
Scheme 1
|
Click part number in the scheme or in the list: 82111 WIRE, ENGINE ROOM MAIN4517548010 ** Std Part 9011906539 ** Std Part 9011906915 ** Std Part 9017906128 ** Std Part 82112 WIRE, ENGINE ROOM, NO.2 ** 84-01 |
Scheme 2
|
Click part number in the scheme or in the list: 82121 WIRE, ENGINE82123 WIRE, ENGINE, NO.3 82124 WIRE, ENGINE, NO.4 82219A WIRE, SENSOR 82824D CONNECTOR, WIRING HARNESS 89656A WIRE, POWER STEERING EARTH 9011906915 ** Std Part 9012606025 ** Std Part 9017906080 ** Std Part 9017806012 ** Std Part 9017906288 ** Std Part 9155380618 ** Std Part 91631J0612 ** Std Part 91621J0612 ** Std Part |
Scheme 3
|

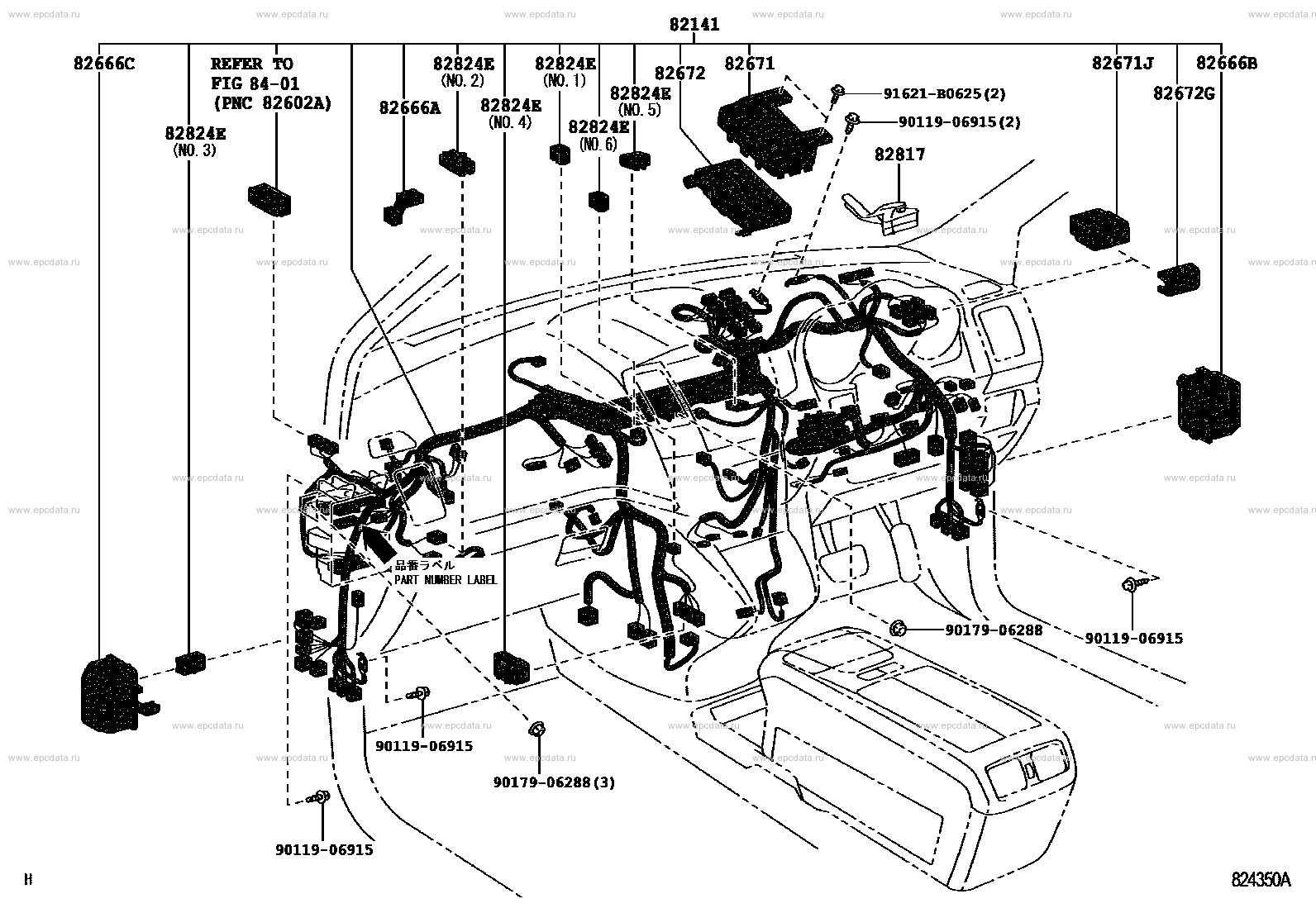

Click part number in the scheme or in the list: 82666A HOLDER, CONNECTOR NO.282672G COVER, JUNCTION BLOCK 82666C HOLDER, CONNECTOR NO.4 82666B HOLDER, CONNECTOR NO.3 82824E CONNECTOR, WIRING HARNESS 82817 PROTECTOR, WIRING HARNESS, NO.1 82671 BLOCK, JUNCTION 82672 COVER, JUNKTION BLOCK 82141 WIRE, INSTRUMENT PANEL 82671J BLOCK, JUNCTION, NO.2 9011906915 ** Std Part 9017906288 ** Std Part 91621B0625 ** Std Part ** 84-01 |
Scheme 4
|
Click part number in the scheme or in the list: 82142 WIRE, INSTRUMENT PANEL, NO.29011906915 ** Std Part 82825L CONNECTOR, WIRING HARNESS |
Scheme 5
|

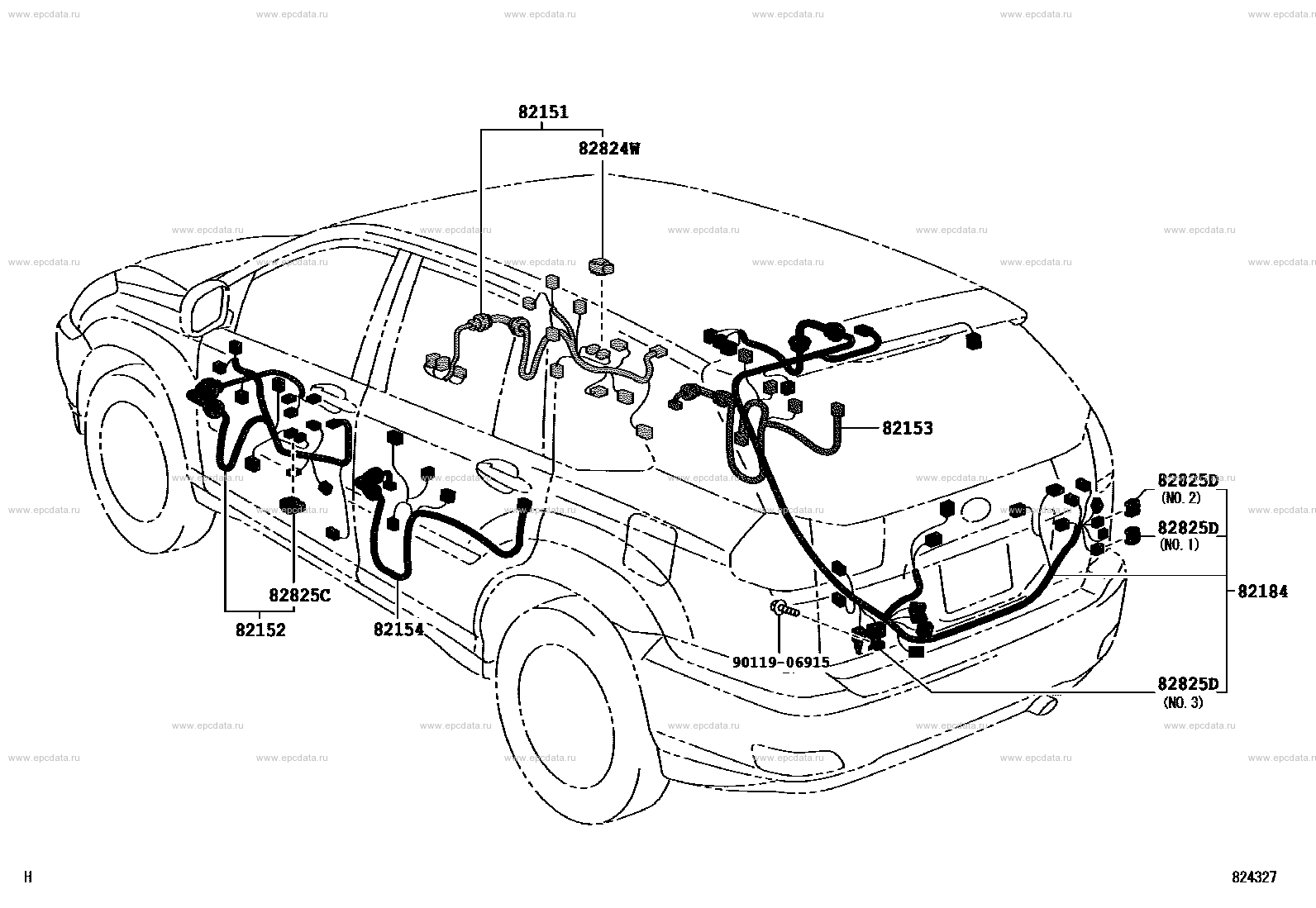

Click part number in the scheme or in the list: 82151 WIRE, FRONT DOOR, RH82152 WIRE, FRONT DOOR, LH 82825C CONNECTOR, WIRING HARNESS 82824W CONNECTOR, WIRING HARNESS 82153 WIRE, REAR DOOR, NO.1 82154 WIRE, REAR DOOR, NO.2 82184 WIRE, BACK DOOR, NO.1 82825D CONNECTOR, WIRING HARNESS 9011906915 ** Std Part |
Scheme 6
|
Click part number in the scheme or in the list: 82191 WIRE, FRONT SEAT, RH82824H CONNECTOR, WIRING HARNESS 82192 WIRE, FRONT SEAT, LH 82824J CONNECTOR, WIRING HARNESS |
Scheme 7
|
Click part number in the scheme or in the list: 82161 WIRE, FLOOR82817A PROTECTOR, WIRING HARNESS, NO.2 82817F PROTECTOR, WIRING HARNESS, NO.7 82817C PROTECTOR, WIRING HARNESS, NO.4 82817B PROTECTOR, WIRING HARNESS, NO.3 82817D PROTECTOR, WIRING HARNESS, NO.5 82817G PROTECTOR, WIRING HARNESS, NO.8 82824F CONNECTOR, WIRING HARNESS 82162 WIRE, FLOOR, NO.2 82163 WIRE, FLOOR, NO.3 82163B WIRE, FLOOR NO.5 82164 WIRE, FRAME 82824G CONNECTOR, WIRING HARNESS 9011906915 ** Std Part ** 86-01 |
Scheme 8
|
Click part number in the scheme or in the list: 82171 WIRE, ROOF, NO.182169 WIRE FRAME, NO.3 82413A WIRE, FUEL TANK 4517548010 ** Std Part 9017906274 ** Std Part 9155380610 ** Std Part 9167380612 ** Std Part 91631J0612 ** Std Part 9011906915 ** Std Part 82817E PROTECTOR, WIRING HARNESS, NO.6 9017908204 ** Std Part 82090A WIRE ASSY,EXTENSION 9155180614 ** Std Part 91553A0612 ** Std Part |
Scheme 9
Scheme 10
Scheme 11
|
Click part number in the scheme or in the list: 82001 CABLE, BOND, NO.182001C CABLE, BOND, NO.2 82001D CABLE, BOND, NO.3 82001G CABLE, BOND, NO.4 9011906915 ** Std Part 9151160612 ** Std Part 9017906080 ** Std Part |
